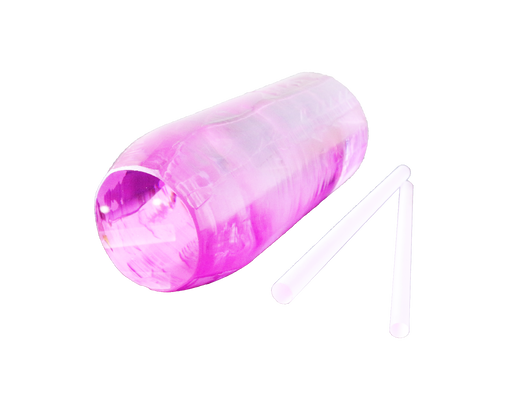

Nd:YAG Neodymium Doped YAG Laser Crystal for High Power Solid State Laser Systems
Nd:YAG is a laser crystal with excellent overall performance, primarily used in industrial, medical, aesthetic, and scientific research applications. In high-power, high-energy, Q-switched, and mode-locked ultra-short pulse laser applications, Nd:YAG is a widely used laser working material. Cosrite can provide high-end Nd:YAG crystals with a wavefront distortion of ≤0.02 λ/inch @ 1064 nm, a contrast ratio of ≥40 dB, parallelism <10″, and verticality <3′.
Crystro can provide high-end Nd:YAG crystals
| Indicator | High Quality Nd:YAG | Normal Quality Nd:YAG |
| Doping Ratio | 1%-1.1% | 1%-1.1% |
| Wavefront Distortion | ≤0.02 Minch@1064nm | ≤0.03 Minch@1064nm |
| Dullness Ratio | ≥40dB | 38dB |
| Flatness | <λ10 | <λ10 |
| Parallelism | <10" | <10" |
| Verticality | ＜3‘ | <10’ |
| Surface Finish | 10/5 | 10/5 |
| Dimensions | Customized according tocustomer needs |
Product Features:
| Molecular Formula | Nd:Y3Al5O12 |
| Lattice Constant | a=12.01A |
| Growth Mode | Czochralski |
| Density | 4.5g/cm3 |
| Mohs Hardness | 8.5 |
| Melting point | 1970°C |
| Refractiveindex | 1.82@1064nm |
Main characteristics:
High gains
Low threshold value
High power
Excellent thermal conductivity and thermal shock resistance
Suitable for multiple modes of operation (continuous, pulse, Q-Switching, mode-locking)
Typical applications:
Medical cosmetic devices
Near-range infrared solid-state lasers and their multiple frequencies, triple frequencies
Diode pump all solid-state microscopic laser
Industrial lasers
High performance laser instruments
Photoelectric resistance device system
Laser Therapeutics and Cosmetizers
