| 브랜드 이름: | Crystro |
| 모델 번호: | LCR-2026-15-01 |
| 배달 시간: | 4-5 주 |
| 지불 조건: | T/T, 서부 동맹, MoneyGram, 페이팔 |

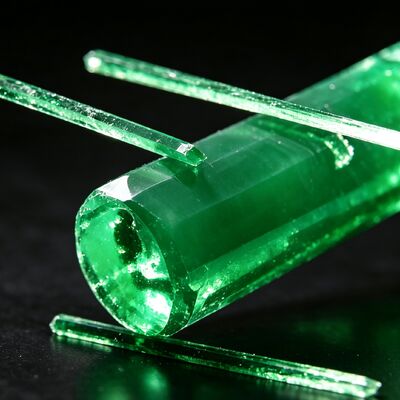

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped
Cr:Tm:Ho:YAG crystals are laser crystals that use yttrium aluminum garnet (YAG) as an activator medium, incorporating sensitizing ions chromium (Cr), energy-transfer ions thulium (Tm), and activator ions holmium (Ho). These crystals produce laser light of specific wavelengths through pulse solid-state laser devices and are widely used in various fields.
|
Crystalstructure
|
Cubic system
|
|
Lattice constant
|
12.01 Å
|
|
Moh's hardness
|
8.5 |
|
density
|
4.56±0.04 g/ cm3
|
|
Specific heat
|
0.59J/g.cm 3 @ 0-20℃
|
|
Elastic Modulus
|
310GPa
|
|
Young's modulus
|
3.17×10 4 Kg/mm 2
|
|
Poisson'sratio
|
0.3
|
|
Tensile strength
|
0.13~0.26GPa
|
|
Coefficient of thermal expansion
|
[100] Direction: 8.2×10 -6 / K @ 0~250℃
|
|
Coefficient of thermal expansion
|
[110] Direction: 7.7×10 -6 /K@ 0~250℃
|
|
Coefficient of thermal expansion
|
[111] Direction: 7.8×10 -6 /K@ 0~250℃
|
|
Thermal conductivity
|
14W/m/K@20℃ ; 10.5W/m/K@100℃
|
|
Thermo-optic coefficient (dn/dT)
|
7.3×10 -6 / K
|
|
Thermal shock resistance
|
790W/m
|
|
Solubility
|
Insoluble in water, slightly soluble in common acids
|
Application areas:
Medicine: The Cr:Tm:Ho:YAG laser is used in various surgical procedures in departments such as urology, orthopedics, otorhinolaryngology, dermatology, and gynecology. It is particularly effective in urological procedures involving urinary tract stones, prostate enlargement, and bladder tumors. Its high-energy pulsed laser can precisely shatter stones while minimizing damage to surrounding tissues.
Meteorology: In meteorological observations, the Cr:Tm: Ho:YAG laser can be employed in lidar systems to enhance the accuracy and real-time nature of meteorological data.
Research: Due to its unique laser characteristics and broad potential for applications, Cr:Tm:Ho:YAG lasers are also an important tool in the field of research, used for various physical, chemical, and biological experiments.
